Specifications：0.20mm ~ 1.00mm
TRIPLE INSULATED WINDING WIRE (TIWW)
Product Name: TIWW-F
Conductor Size: 0.20m/m ~ 1.00m/m
Thermal Index: CLASS F (155 degree C)
Insulation Rated: UL Reinforce insulated ( 6000vrms/1 min – Twisted Pair )
Working Voltage: 1000 vrms
Safety Certification: UL E321186
Soldering: "Solderable" (High efficiency and Save cost)
Environment Protection: RoHS, REACH and HF (Halogen Free)

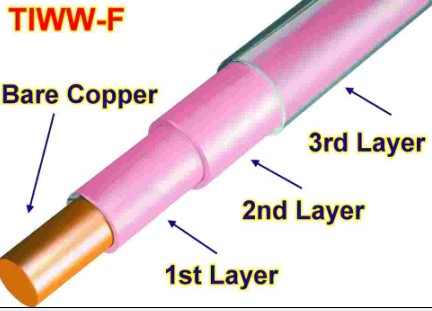

TIWW-F owns three independent insulation layers, is the real TIWW. (Checked and confirmed by third party CTI)
