Applications:
1000Base T(IEEE 802.3ab)
Broadband video

Product Description:
Conductor:23 AWG Bare Solid Copper
Insulation:FR-PE, 100%FEP
Jacket:FR-PVC

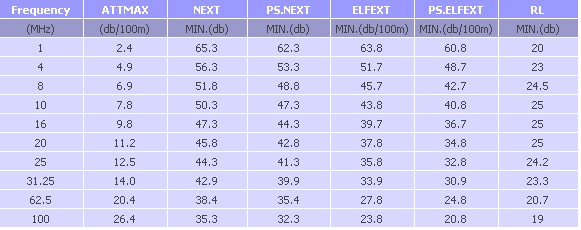

Product Electrical Characteristics:
Impedance:100±15Ω
Mutual Capacitance max. nf/1000ft: 17.1
DC Resistance max. Ω/1000ft: 28.6
DC Resistance Unbalance of a pair: 5% max
Capacitance Unbalance(Pair to Ground): 330pf/100m max.
Propagation Delay Skew: 45ns/100m
Normal Velocity of Propagation: 68% at 250MHz
